Analytics setup with Google Tag Manager and PostHog

This guide explains how to set up the analytics environment with Google Tag Manager (GTM from now on). It assumes that a PostHog account is ready and a phc_xxx API key is available.

GTM setup

Follow these steps to set up GTM:

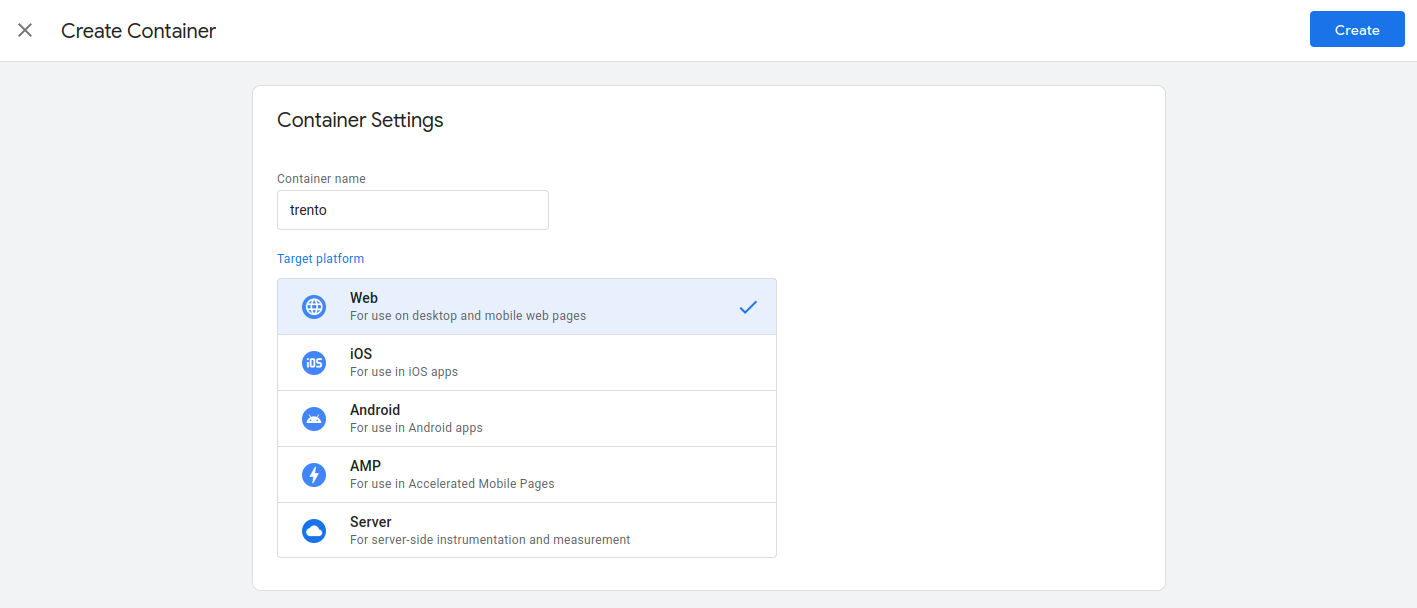

  1. Create a new container of type Web in the GTM account.

    Create container

  2. Get the Container ID. This value is used during the trento-web artifacts generation.

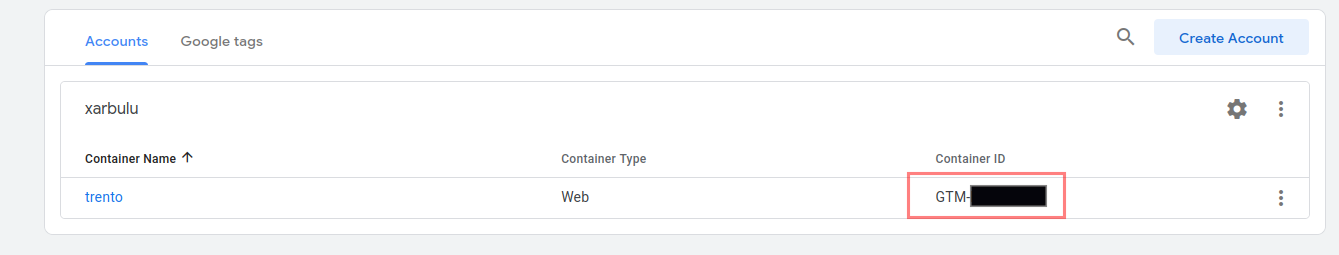

    Get ID

  3. Go to the container.

    Now, there are two options: a simpler approach and a more "production-ready" approach. The second includes a "Prod/Test" setup, which comes in handy for having a development/test playground. The simpler approach is just a subset of the other, so let’s start with that one.

  4. Create a new tag of type Custom HTML. Put the following content in the HTML tag.

    The content includes the PostHog configuration, which is sent to the trento-web frontend once GTM is loaded.

    <script>
   var posthogConfig = {
      apiKey: 'phc_your_id',
      config: {
         api_host: 'https://eu.posthog.com'
      }
   }
</script>

    Disclaimer: This piece of script might change over time.

    Finally, use the All Pages trigger as Firing Triggers.

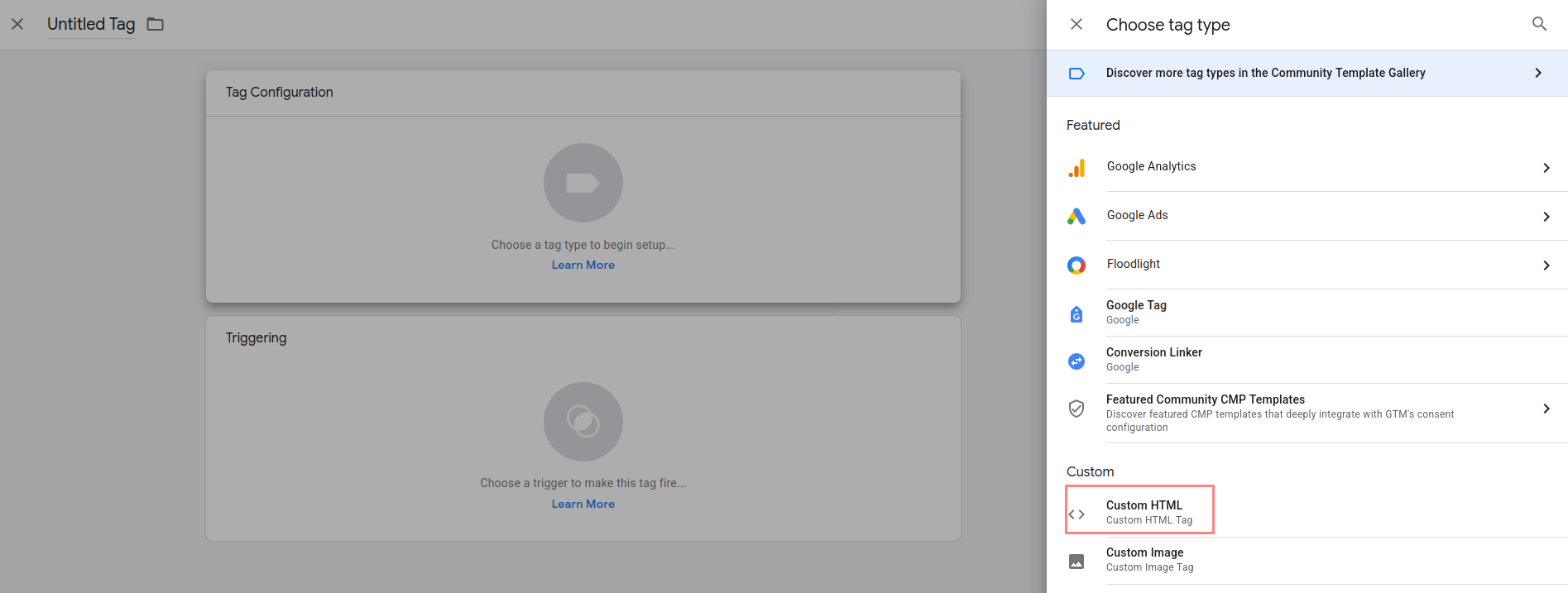

    Create tag

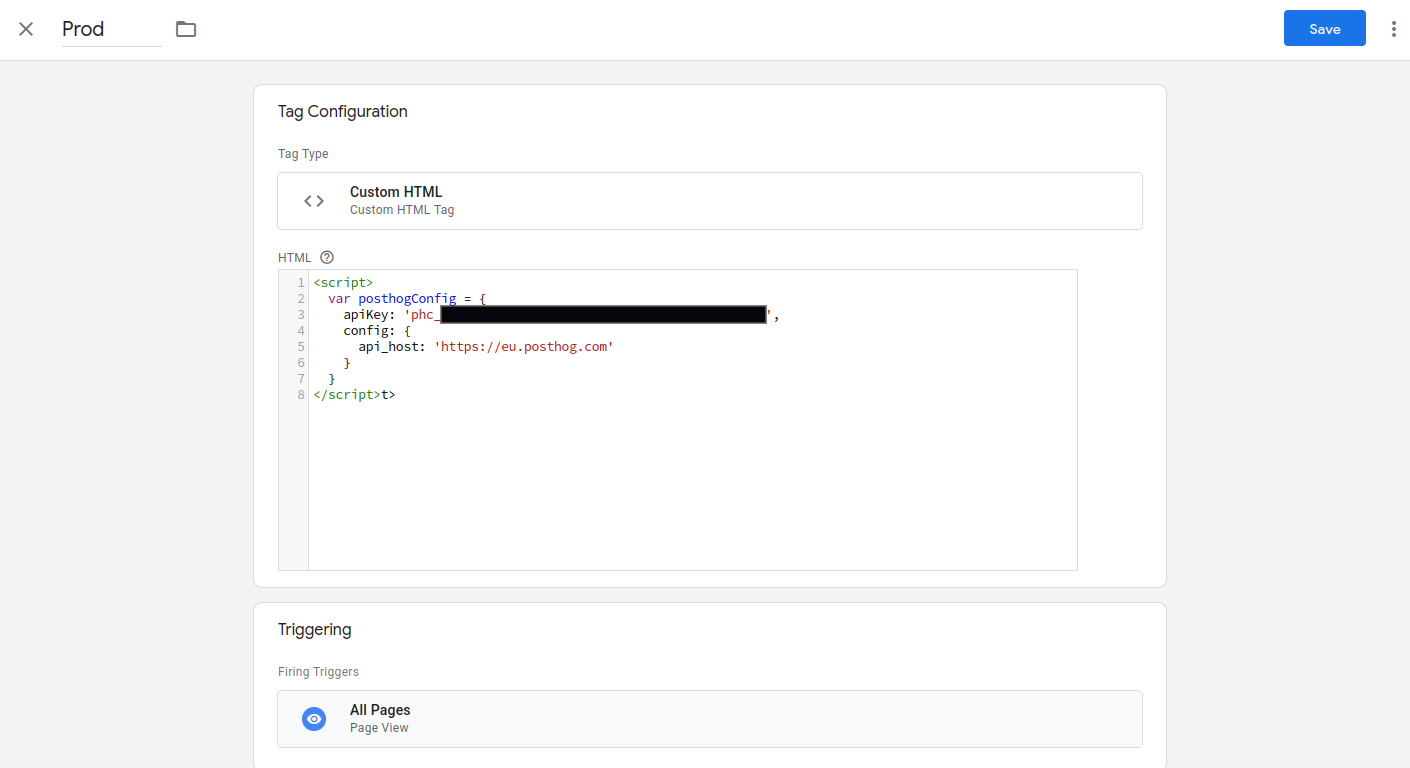

    Custom HTML

    With this, the simple approach is done, and GTM is ready to be used. Let’s explain now how to enhance this to have a more production-ready setup.

  5. Create another new tag with the same type and content as the previous one. This one is used for development, so changes don’t affect the production environment during tests. Simply use a different name.

  6. Create Triggers to filter incoming requests by "Page Hostname". This enables redirection to different tags. For example, create 3 triggers to filter requests coming from the Trento demo page, PR environment pages, and localhost setups. Use PageView as the type and configure the correct domains to be redirected to the Test/Devel tag.

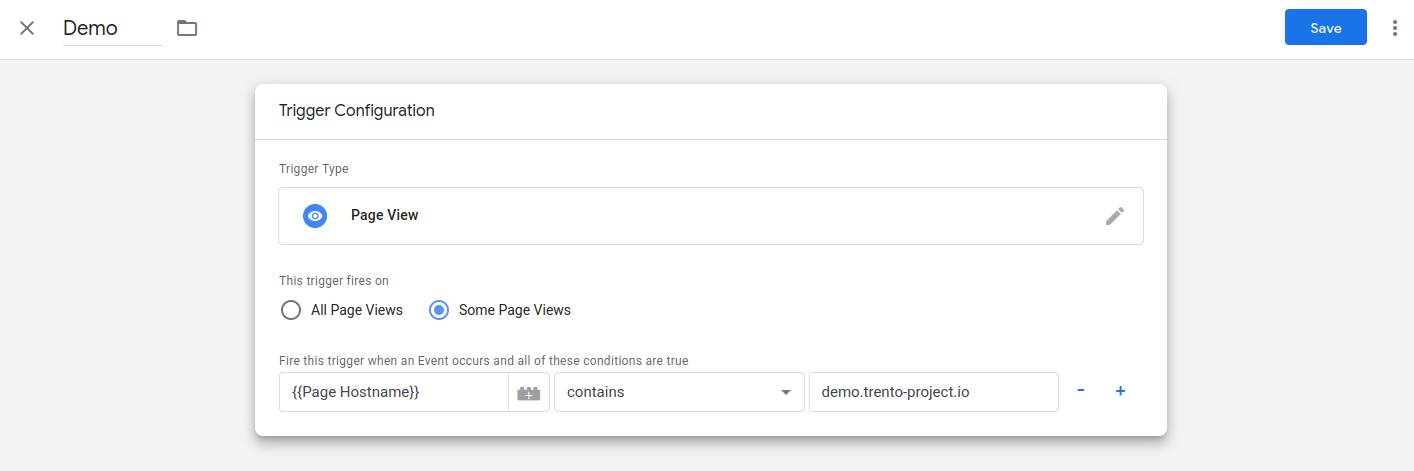

    Create trigger

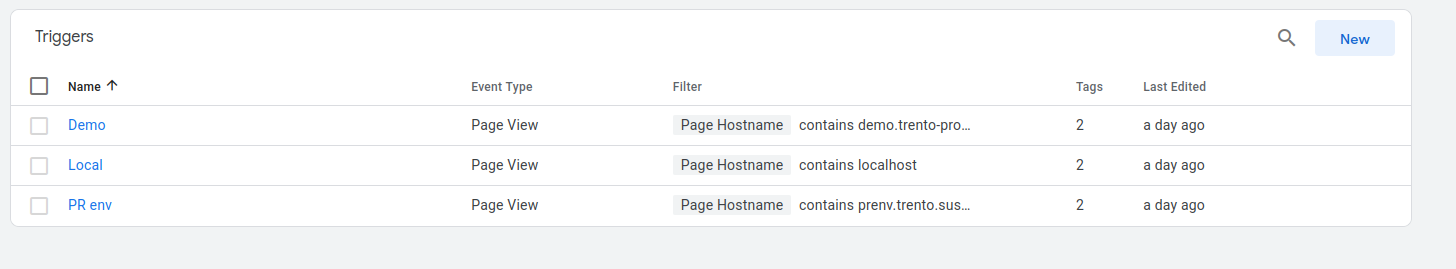

    Triggers

  7. Now that the Triggers are created, use them in the Prod and Test tags. Add them as exceptions in the Prod tag and as firing triggers in the Test tag.

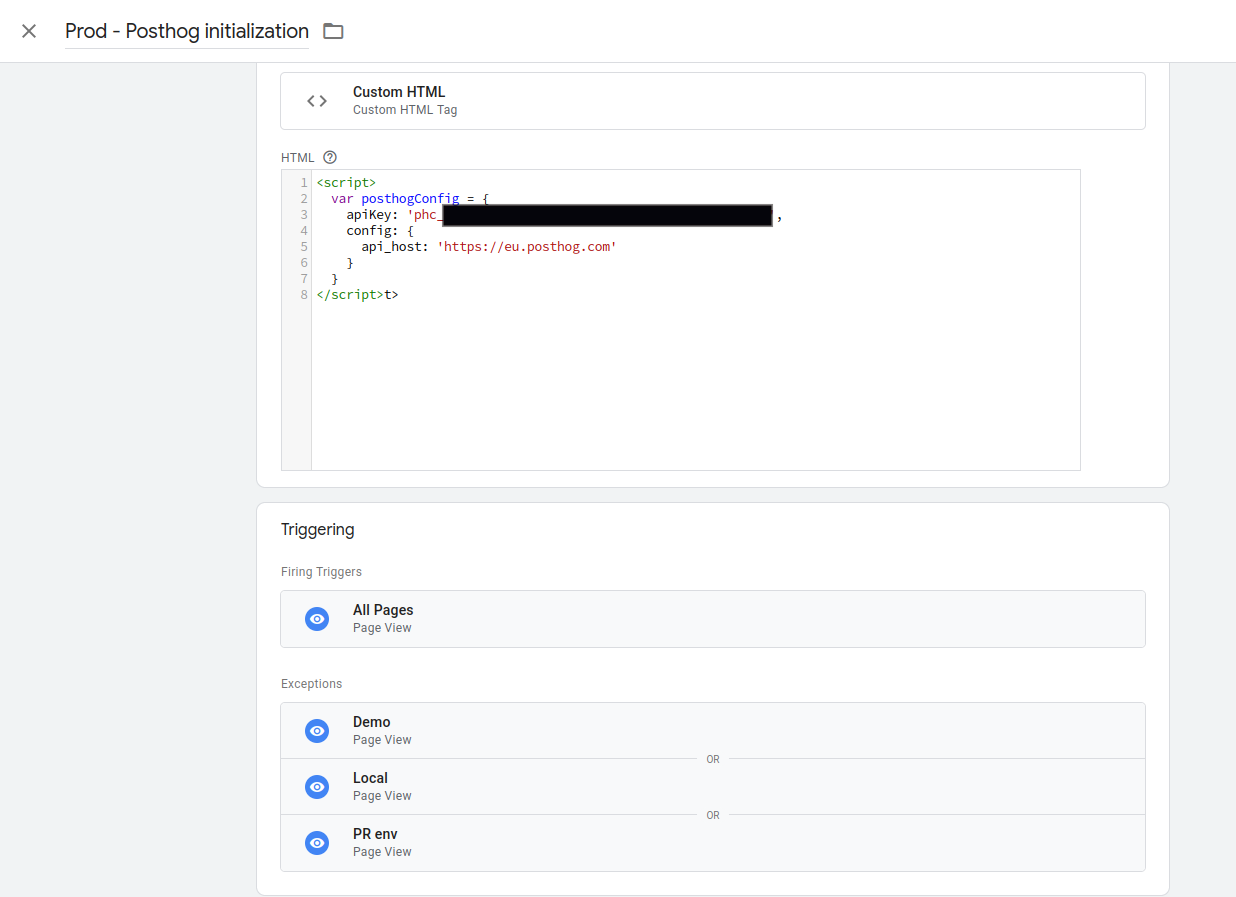

    Prod triggers

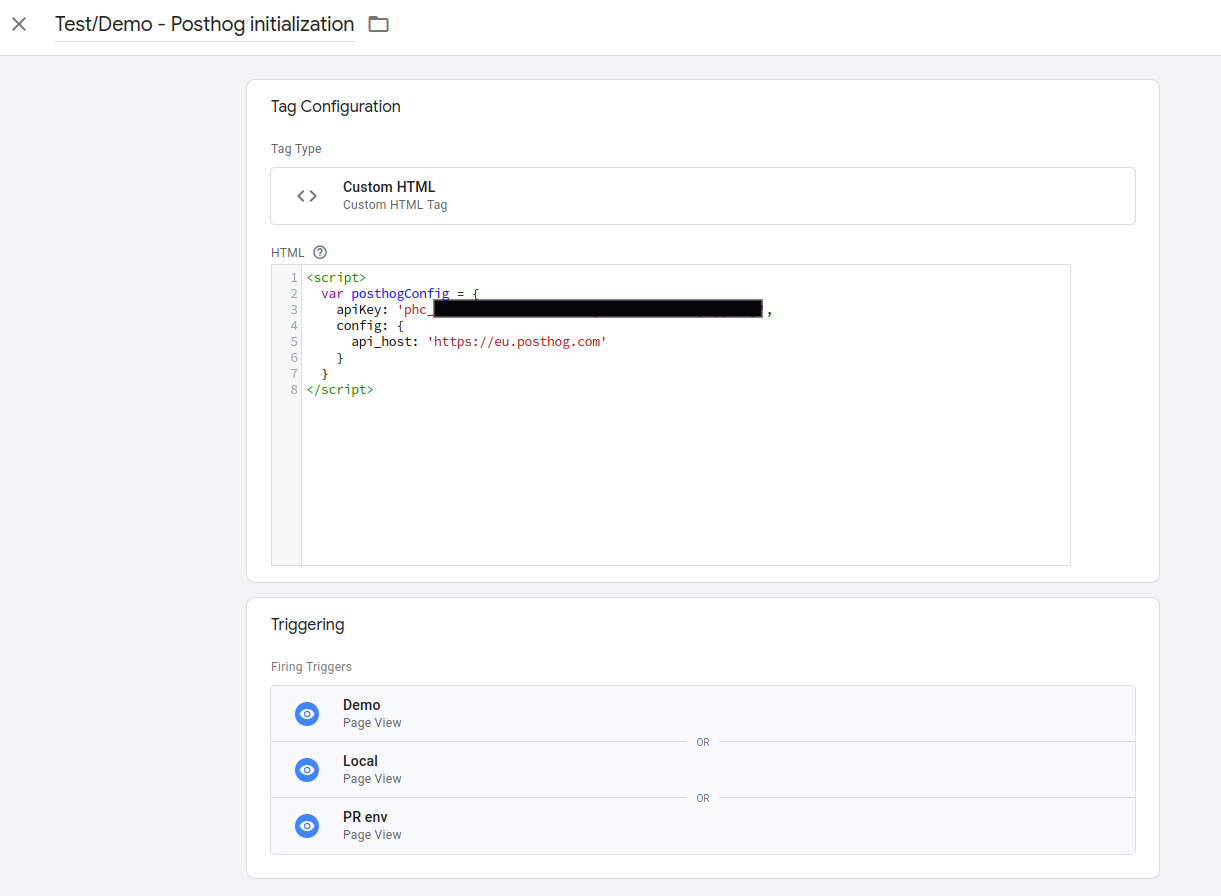

    Test triggers

    The end result should look like this:

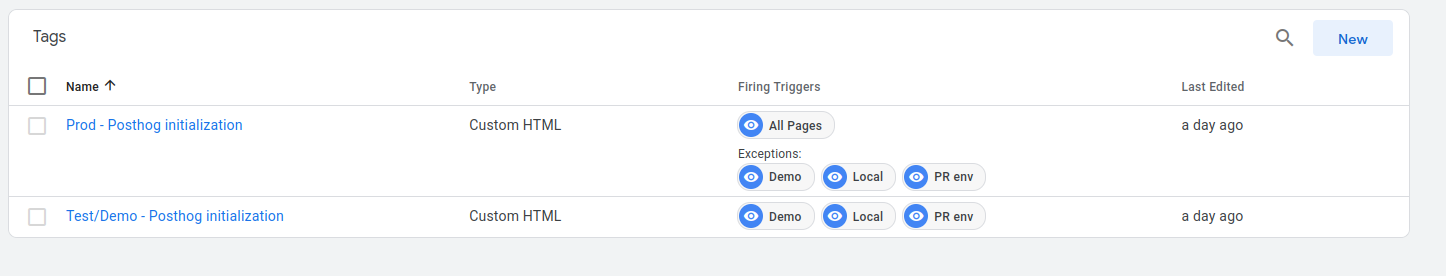

    Tags

Generate trento-web using the GTM container ID

Once the GTM setup is done and the container ID is available, the trento-web artifact can be generated to use it. Configuring GTM is a compile-time process, so the ID must be provided at this stage. Use the GTM_ID value for that.

export GTM_ID=your-id
mix release

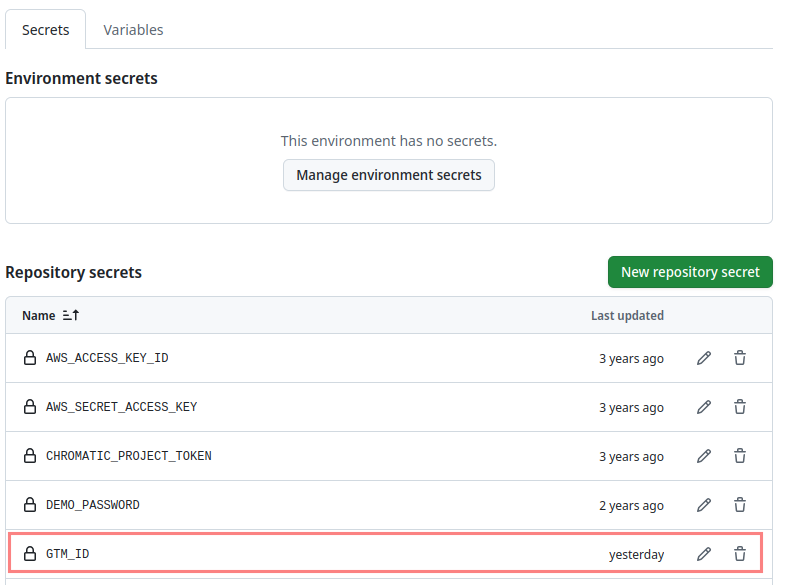

This is already done in trent-web Github Action CI, so it is already automatized. To set a new GTM_ID, change the value from the repository settings secrets.

Github CI setup
