What is Trento?

Trento is the official version of the Trento community project. It is a comprehensive monitoring solution consisting of two main components: the Trento Server and the Trento Agent. Trento provides the following functionality and features:

  • A user-friendly reactive Web interface for SAP Basis administrators.

  • Automated discovery of Pacemaker clusters using SAPHanaSR classic or angi as well as different fencing mechanisms, including diskless SBD.

  • Automated discovery of SAP systems running on ABAP or JAVA stacks and HANA databases.

  • Awareness of maintenance situations in a Pacemaker cluster at cluster, node, or resource level.

  • Configuration validation for SAP HANA Scale-Up Performance-optimized, SAP HANA Scale-out and ASCS/ERS clusters deployed on Azure, AWS, GCP or on-premises bare metal platforms, including KVM and Nutanix.

  • Useful information that offers insights about the execution of configuration checks.

  • Delivery of configuration checks decoupled from core functionality.

  • Email alerting for critical events in the monitored landscape.

  • Integration of saptune into the console and specific configuration checks at host and cluster levels.

  • Information about relevant patches and upgradable packages for registered hosts via integration with SUSE Multi-Linux Manager.

  • Monitoring of CPU and memory usage at the host level through basic integration with Prometheus.

  • API-based architecture to facilitate integration with other monitoring tools.

  • Rotating API key to protect communication from the Trento Agent to the Trento Server.

  • Housekeeping capabilities.

The Trento Server is an independent, distributed system designed to run on a Kubernetes cluster or as a regular systemd stack. The Trento Server provides a Web front-end for user interaction. The Trento Server consists of the following components:

  • The web component that acts as a control plane responsible for internal and external communications as well as rendering the UI.

  • The checks engine named wanda that orchestrates the execution of configuration checks.

  • A PostgreSQL database for data persistence.

  • The RabbitMQ message broker for communicating between the checks engine and the agents.

  • A Prometheus instance that retrieves the metrics collected by the Prometheus node exporter in the registered hosts.

The Trento Agent is a single background process (trento-agent) running on each monitored host of the SAP infrastructure.

See Architectural overview for additional details.

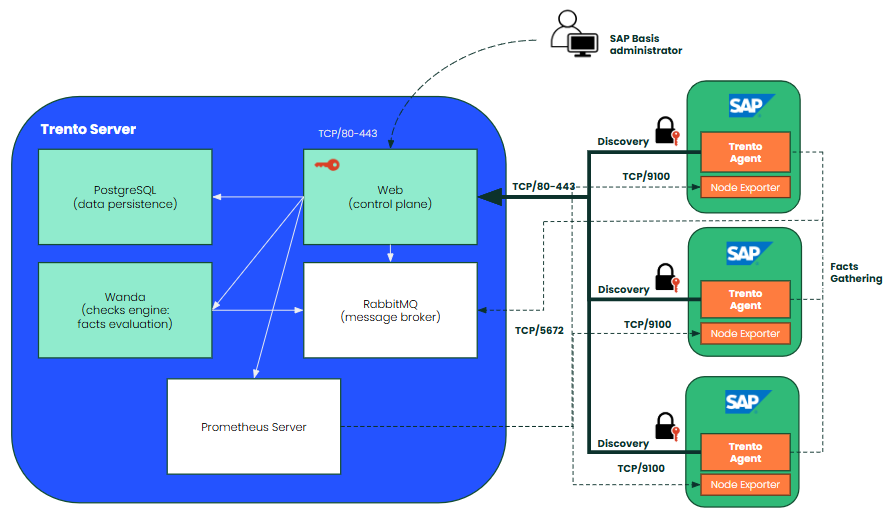

trento high level architecture
Figure 1. Architectural overview
